HR Channels - Bar Channel
|

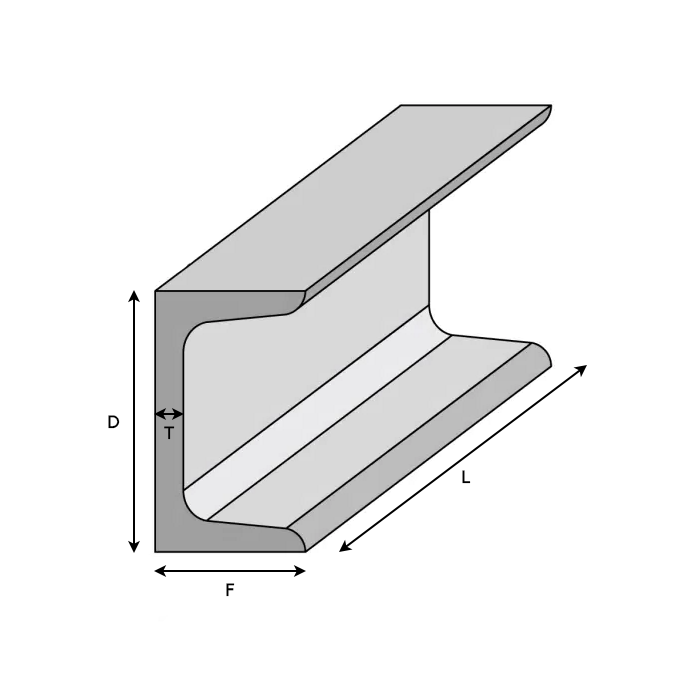

Hot Rolled Bar Channels have a “C” shaped cross-section typically with a depth under 3” and are intended for light-duty structural applications. These characteristics make them well suited for shelving and storage construction, fence and railing construction, and framing and bracing small structures, machinery, and trailers among other things. Bar Channel is measured with 4 dimensions: Depth (D), Flange (F), Thickness (T), and Length (L). |
Click to enlarge
|
| Product Name | Depth | Flange | Thickness | Lengths Available |
|---|---|---|---|---|
| 1 " x 1/2 " x 1/8 " HR Bar Channel | 1 " | 1/2 " | 1/8 " | 20' |
| 1-1/4" x 1/2 " x 1/8 " HR Bar Channel | 1-1/4" | 1/2 " | 1/8 " | 20' |
| 1-1/2" x 1/2 " x 1/8 " HR Bar Channel | 1-1/2" | 1/2 " | 1/8 " | 20' |
| 1-1/2" x 3/4 " x 1/8 " HR Bar Channel | 1-1/2" | 3/4 " | 1/8 " | 20' |
| 2 " x 1/2 " x 1/8 " HR Bar Channel | 2 " | 1/2 " | 1/8 " | 20' |
| 2 " x 9/16" x 3/16" HR Bar Channel | 2 " | 9/16" | 3/16" | 20' |
| 2 " x 5/8 " x 1/4 " HR Bar Channel | 2 " | 5/8 " | 1/4 " | 20' |
| 2 " x 1 " x 1/8 " HR Bar Channel | 2 " | 1 " | 1/8 " | 20' |
| 2 " x 1 " x 3/16" HR Bar Channel | 2 " | 1 " | 3/16" | 20' |
| 2-1/2" x 5/8 " x 3/16" HR Bar Channel | 2-1/2" | 5/8 " | 3/16" | 20' |
